Product Introduction

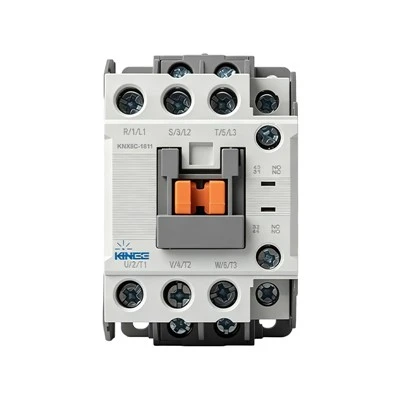

The KNX8GN series AC contactor is a Multifunctional Contactor AC Magnetic Contactor designed for circuits using a rated voltage of 660V AC 50/60Hz and a rated current up to 85A, suitable for manufacturing, breaking, frequent starting, and control of AC motors. As a Multifunctional Contactor AC Magnetic Contactor, it can be combined with auxiliary contact blocks, time delays, and mechanical interlocking devices to become a time-delay contactor, a mechanically interlocked contactor, and a star-delta starter. With a thermal relay, this Multifunctional Contactor AC Magnetic Contactor can be integrated into an electromagnetic starter. Furthermore, the KNX8GN series complies with the IEC60947-1 standard, ensuring reliable performance as a Multifunctional Contactor AC Magnetic Contactor in various industrial applications.
Technical Parameters
|
Type |
KNX8GN-9 |
KNX8GN-12 |
KNX8GN-18 |
KNX8GN-22 |
KNX8GN-32 |
||
|
Applicable Category AC1 duty |
20A |
20A |
25A |
32A |
50A |
||
|
Applicable Category AC3 duty |
200-240V |
2.5kW/11A |
3.5kW/13A |
4.5kW/18A |
5.5kW/22A |
7.5kW/32A |
|
|
380-440V |
4kW/9A |
5.5kW/12A |
7.5kW/18A |
11kW/22A |
15kW/32A |
||
|
500-550V |
4kW/7A |
7.5kW/12A |
7.5kW/13A |
15kW/22A |
18.5kW/28A |
||
|
690V |
4kW/5A |
7.5kW/9A |
7.5kW/9A |
15kW/18A |
18.5kW/21A |
||
|
Continuous Current Ith |
20A |
25A |
30A |
32A |
45A |
||
|
AC Motor |
Single Phase |
115V |
0.5HP |
0.5HP |
1HP |
2HP |
2HP |
|
230V |
1HP |
2HP |
3HP |
3HP |
5HP |
||
|
Three Phase |
200V |
2HP |
3HP |
5HP |
7HP |
7.5HP |
|
|
230V |
3HP |
3HP |
5HP |
7.5HP |
10HP |
||
|
460V |
2HP |
7.5HP |
10HP |
10HP |
20HP |
||
|
575V |
5HP |
10HP |
15HP |
15HP |
20HP |
||
|
Type |
KNX8GN-40 |
KNX8GN-50 |
KNX8GN-65 |
KNX8GN-75 |
KNX8GN-85 |
||
|
Applicable Category AC1 duty |
60A |
80A |
100A |
110A |
135A |
||
|
Applicable Category AC3 duty |
200-240V |
11kW 40A |
15kW 55A |
18.5kW 65A |
22kW 75A |
25kW 85A |
|
|
380-440V |
18.5kW 40A |
22kW 50A |
30kW 65A |
37kW 75A |
45kW 85A |
||
|
500-550V |
22kW 32A |
30kW 43A |
37kW 60A |
45kW 64A |
45kW 75A |
||
|
690V |
22kW 25A |
30kW 33A |
37kW 47A |
45kW 47A |
45kW 52A |
||
|
Continuous Current Ith |
50A |
70A |
80A |
90A |
100A |
||
|
AC Motor |
Single Phase |
115V |
3HP |
3HP |
5HP |
5HP |
7.5HP |
|
230V |
5HP |
7.5HP |
10HP |
15HP |
15HP |
||
|
Three Phase |
200V |
10HP |
10HP |
15HP |
20HP |
25HP |
|
|
230V |
10HP |
15HP |
20HP |
25HP |
30HP |
||
|
460V |
25HP |
30HP |
40HP |
50HP |
50HP |
||
|
575V |
25HP |
30HP |
40HP |
50HP |
50HP |
||
