Product Introduction

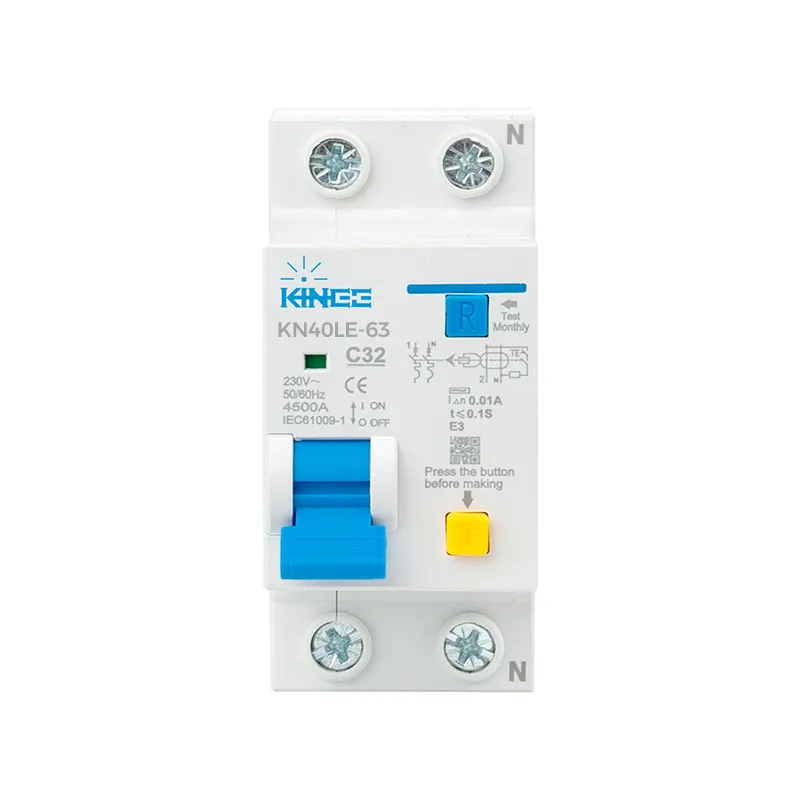

Integrated residual current operated circuit breaker,The KN40LE-63 integrated residual current circuit breaker, also known as a residual current operated circuit breaker (RCCB), is a 1P+N type suitable for AC 50Hz circuits with a rated voltage of 230V and a rated current up to 63A. It serves as residual current (electric shock), overload, and short-circuit protection for load circuits. It can also be used for infrequent switching and connection. This series of products features high breaking capacity, strong applicability, small size, light weight, attractive appearance, and ease of use. It is suitable for various locations, such as shops, shopping malls, hotels, guesthouses, factories, and other large venues.
Technical Parameters
|
Model |
Series |
Rated current (A) |
Rated short-circuit breaking capacity |
Trip unit type |
||
|
Voltage (V) |
Short circuit breaking capacity (A) |
cosΦ |
||||
|
KN40LE-63 |
1P+N |
6,10,16,20,25,32,40,50,63 |
230 |
4500 |
0.75～0.8 |
C,D |
|
Trip unit type |
Rated current (A) |
Test current (A) |
initial state |
Agreed Time |
Expected results |
|
C,D |
≤63 |
1.13In |
cold state |
t≤1h |
Non-dismounting |
|
≤63 |
1.45In |
hot state |
t＜1h |
Trip |
|
|
≤32 |
2.55In |
hot state |
1s＜t＜60s |
Trip |
|
|
＞32 |
1s＜t＜120s |

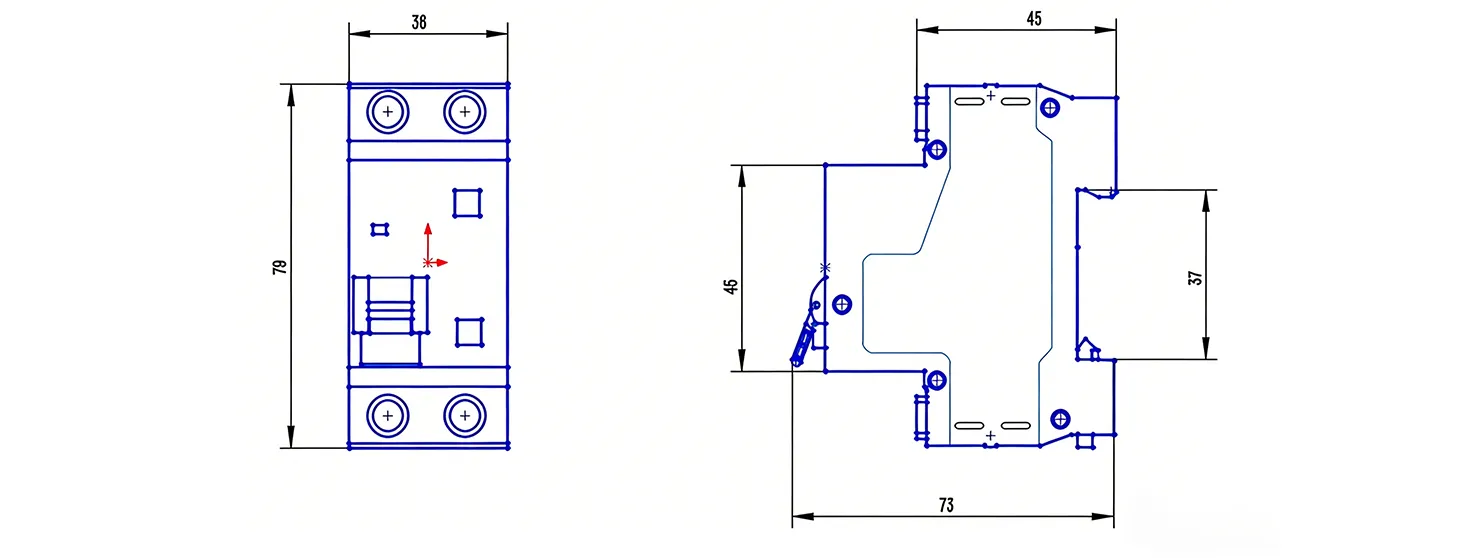

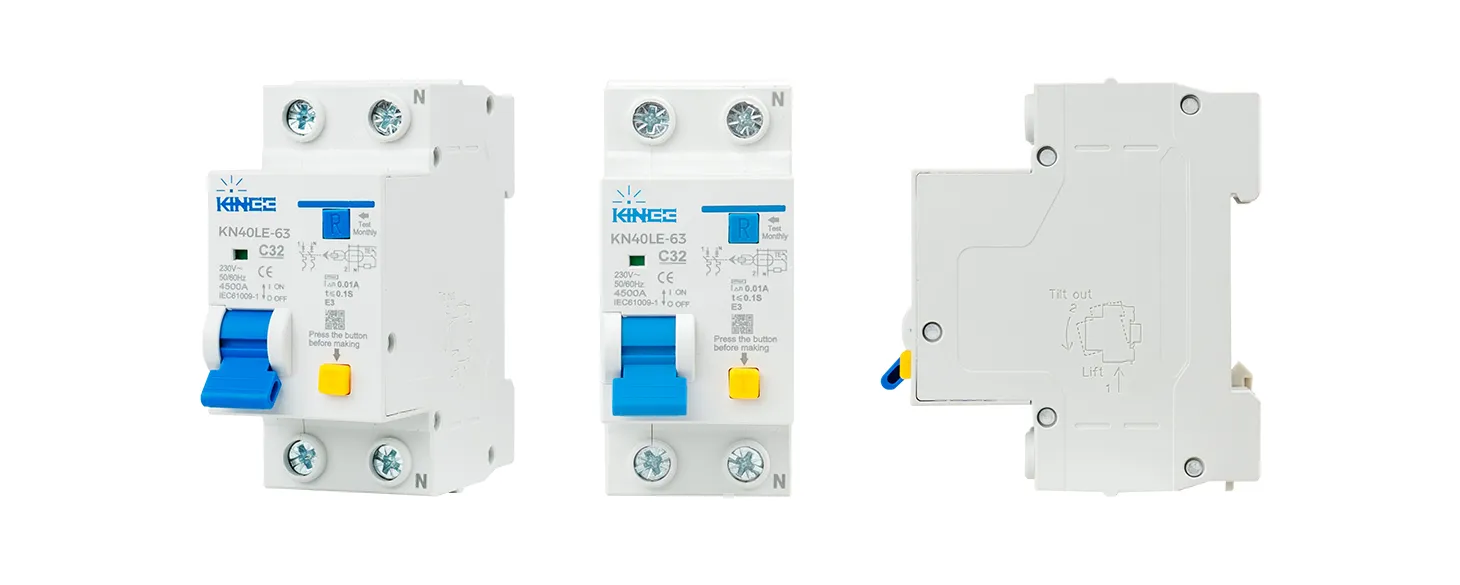

Appearance and Installation Dimensions
