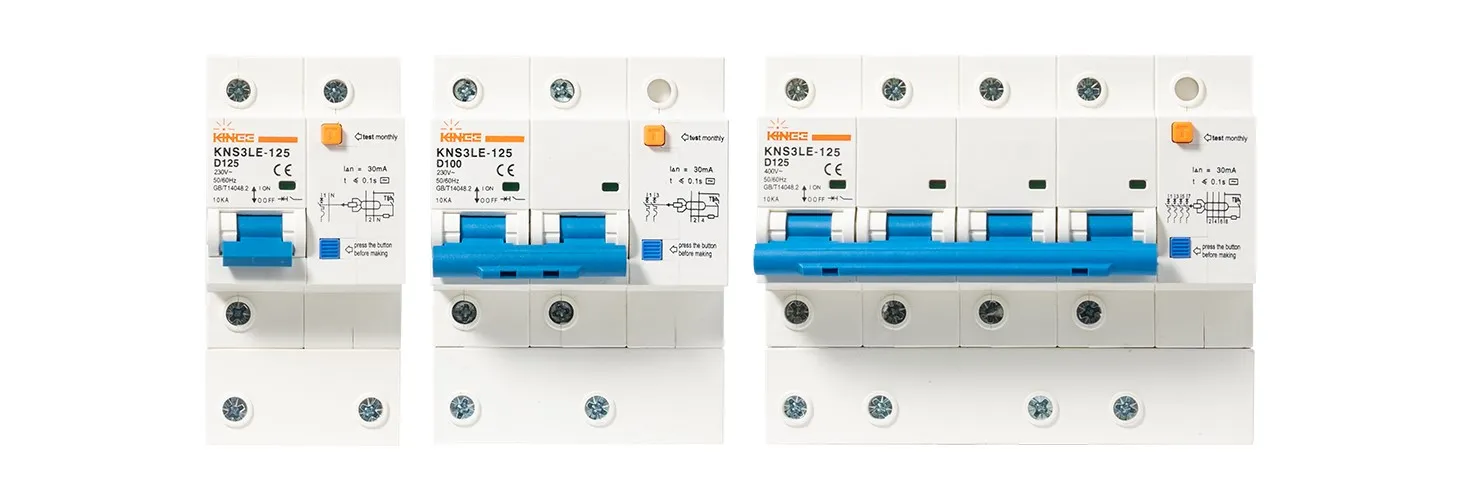

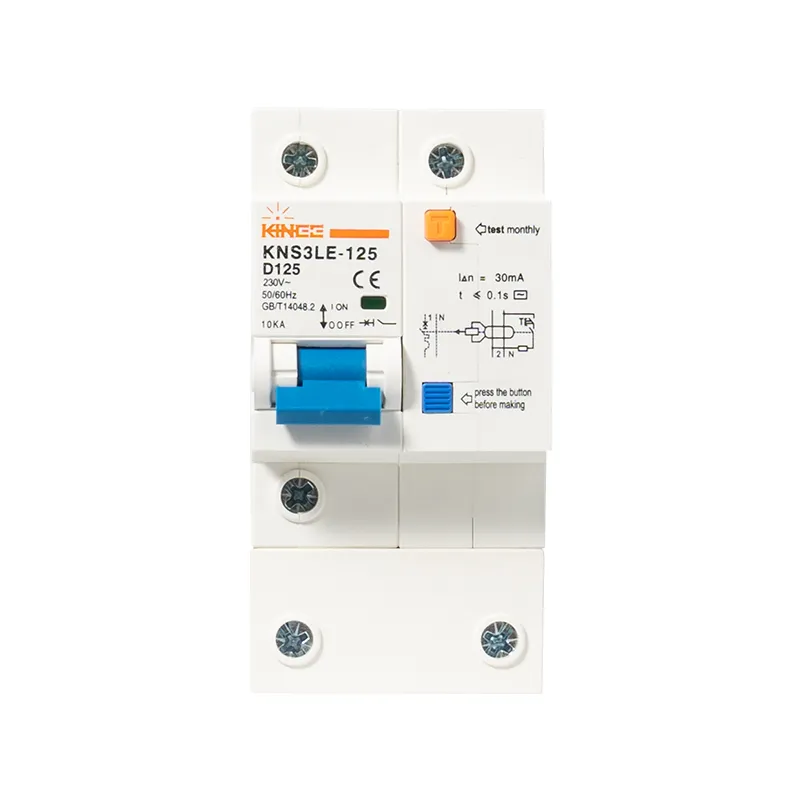

Product Introduction
Suitable for AC 50/60Hz power distribution network circuits with a rated operating voltage of 400V and below and a rated current of 125A and below; provides indirect contact protection for people; provides leakage protection for equipment; provides overload and short-circuit protection for lines and power supply equipment; can be used for infrequent switching of lines and infrequent starting of motors under normal conditions.
Technical Parameters
|
Model |
Type C |
Type D |
|
Extreme number |
1P+N,2P,3P,3P+N,4P |
|
|
Rated current In (A) |
63,80,100,125 |
|
|
Rated operating voltage Ue |
230V,400V |
|
|
Rated insulation voltage Ui |
500V |
|
|
Rated breaking capacity (A) |
Ics=Icu=6000A |
Ics=7500A,Icu=10000A |
|
Rated impulse withstand voltage Uimp (1.2/50) |
4 |
|
|
Rated remaining connecting and disconnecting capacity I△m |
2000A |
2500A |
|
Rated residual operating current IΔm (mA) |
30mA,50mA,100mA,30mA |
|
|
Rated residual non-operating current I△no (mA) |
15mA,25mA,50mA,150mA |
|
|
Maximum breaking time t of rated residual current |
0.1s |
|
|
Mechanical life |
10,000 times |
|
|
Electrical life |
1500 times |
|
|
Operating frequency |
120 times/hour |
|
|
Protection level |
IP20 |
|

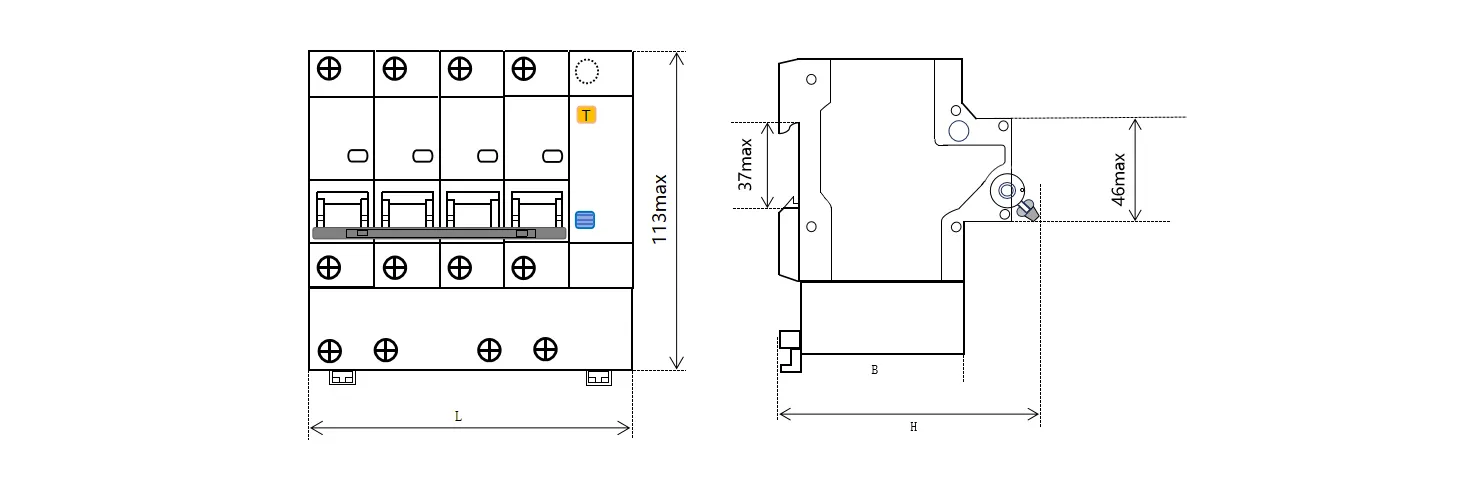

Appearance and Installation Dimensions
|
Grade (mm) |
1P+N |
2P |
3P |
3P+N |
4P |
|
L |
54max |
81max |
108max |
108max |
135max |
|
H |
73max |
78max |
78max |
78max |
78max |
|
B |
51max |
51max |
51max |
51max |
51max |
