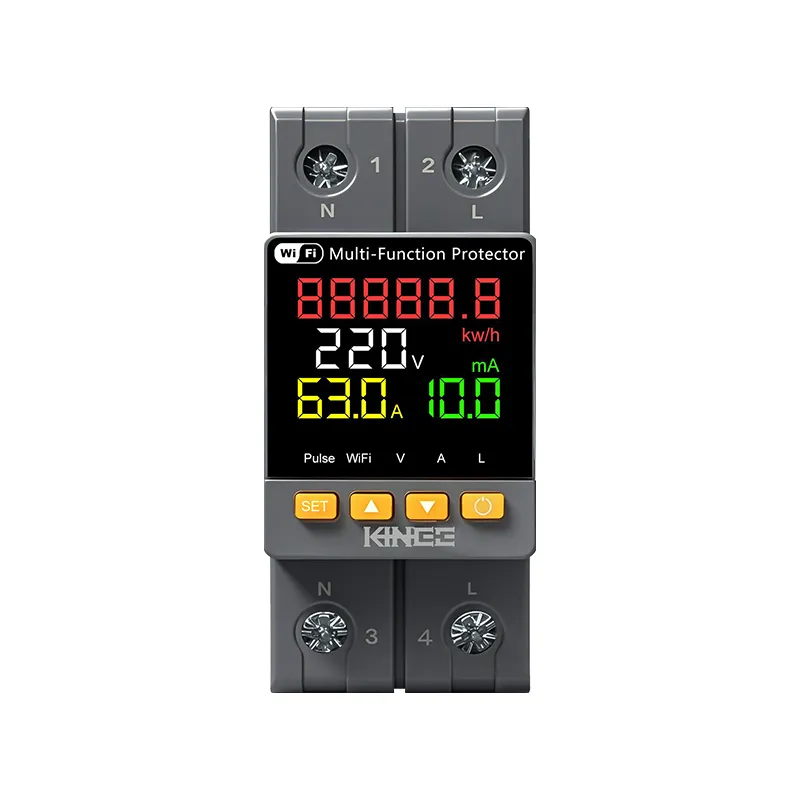

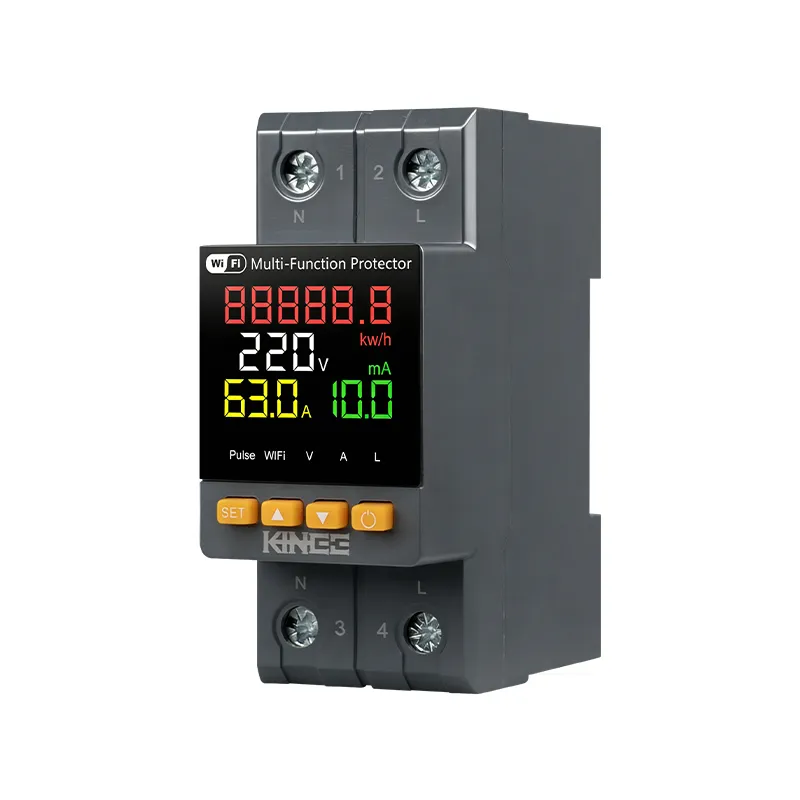

WiFi Multi-Function Protector

The WiFi Multi-Function Protector,adjustable voltage, current and leakage detection protection device, with a kilowatt-hour meter, is an intelligent protector that integrates overvoltage protec-tor, undervoltage protector, overcurrent protector and leakage detection. In the event of an overvoltage fault, undervoltage fault, or overcurrent fault, the product can immediately cut off the power supply to avoid damage to electrical equipment. The overvoltage, undervoltage, overcurrent and leakage detection switches of the product can be set by the user and adjusted according to local actual conditions.

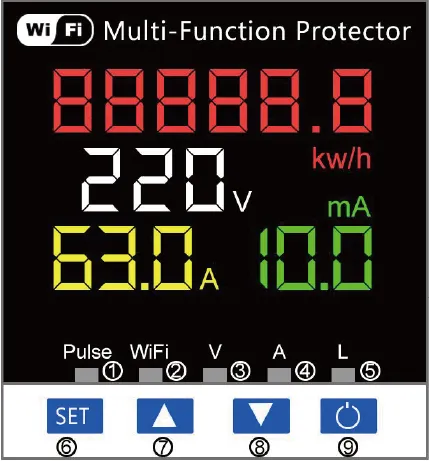

① Kilo-watt hour meter pulse indicator

② WiFi indicatorOver/under voltage alarm indicator

④Over-current alarm indicator

⑤ Leakage alarm indicator

⑥ Set: Menu setting key

⑦ Adjustment key +

Press for 5 seconds and the battery power will be cleared

⑧ Adjustment key -

Press and hold for 5 seconds, the WiFi indicator light flashes and the device enters pairing mode.

Manual switch

Press the power button to OFF, then press and hold the power button for 5-10 seconds until it restarts to restore to factory settings.

1. In the case of overvoltage fault, undervoltage fault, overcurrent fault in the single-phase line, the product can disconnect the line power supply and automatically restore the line connection after a delay time after the line voltage or current returns to normal.

2. In the case of instantaneous overvoltage in the line, the product can protect the equipment from misopera-tion.

3. If the leakage detection switch is turned on, when the line is affected by unstable voltage or sudden power failure and power on due to loose connection and other faults, the product will disconnect the line after three seconds.

4. When the line fault voltage reaches the peak, the product itself will not be damaged.

5. The protector can display kilowatt-hours, KW and power factor.
