Product Introduction

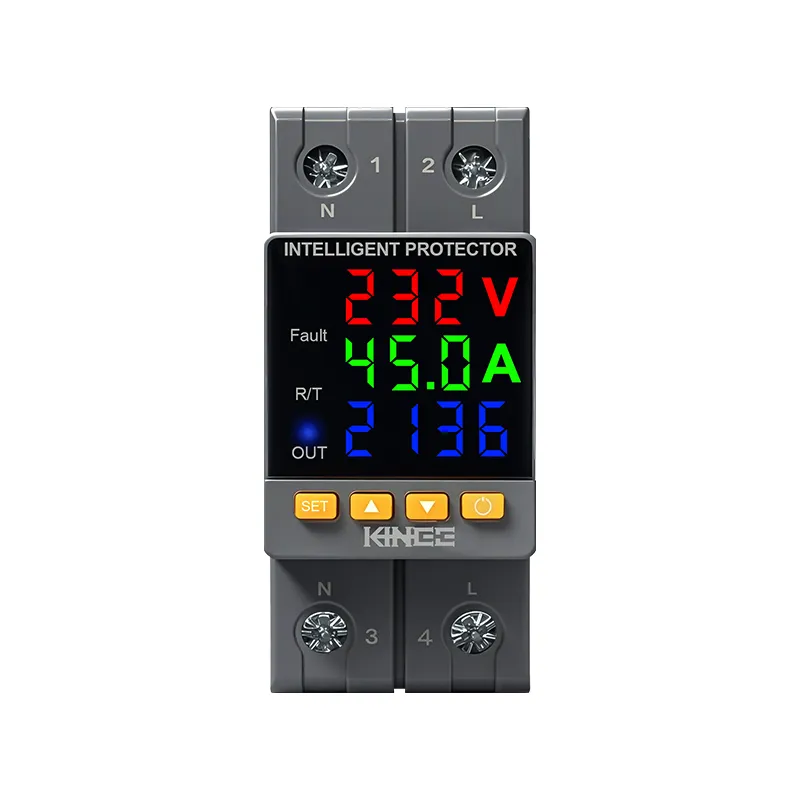

The Three Display Current Voltage Meter Protector product integrates overvoltage protection, undervolt-age protection, overcurrent protection, electricity metering, and intelligent protection functions. When overvoltage, undervoltage, or overcurrent faults occur in the circuit, this product can immediately disconnect the circuit, preventing unnecessary damage to electrical equipment.

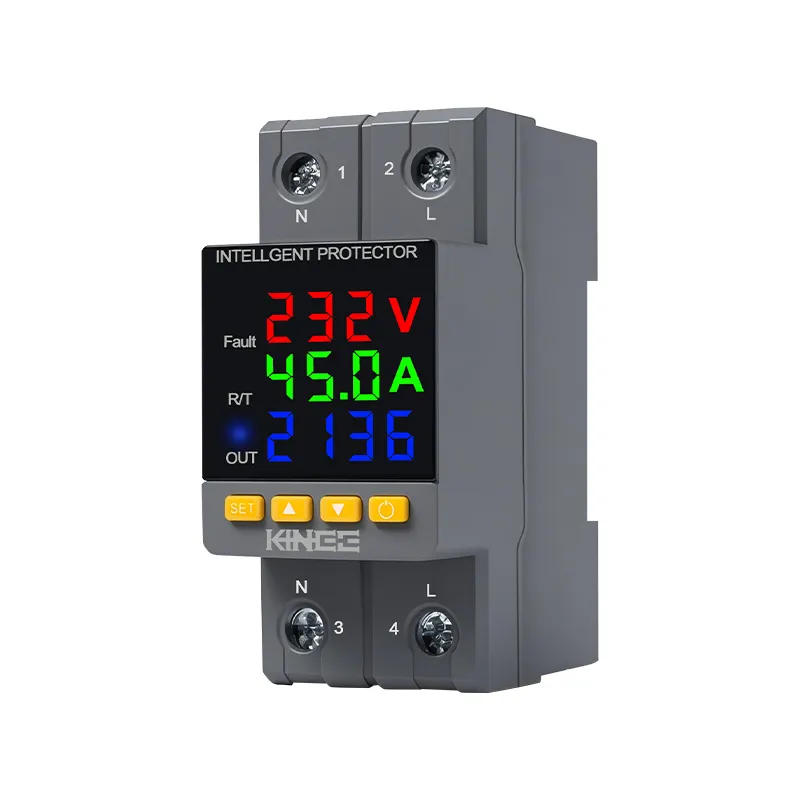

product-800-800

Front Panel Introduction

product-1162-549

Default Setting

Technical parameter	Setting range	Step	Factory setting
Overvoltage trip value	230~300V	1V	280V
Undervoltage trip value	120~210V	1V	160V
Overcurrent trip value	1~63A	1A	20A
Reset/start delay	1S-999S	1s	5s

Current specification	15A	25A	32A	50A	63A
Rated operating current(In,A)	15	25	32	50	63
Maximum operating current Imax (A, within 10min)	25	30	40	60	80
Max.power of load(kW)	3.6	5.5	7	11	13.9

Technical Data

Project	Parameters
Rated supply voltage	AC 220V
Operation voltage range	AC80V~300V (Single phase)
Rated frequency	40/50/60/70Hz
Electric current(>A)setting range	1~63A
Overvoltage(>U)setting range	130-300V
Undervoltage(	80~210V
Error	2%
>U and	0.5S
Reset/start delay	1S-999S
Voltage measurement accuracy	1% (Not exceeding 1% of the overall range)
Rated insulation voltage	300V
Output contact	1NO
Electrical life	10⁵
Mechanical life	10⁶
Protection degree	IP20
Pollution degree	3
Altitude	<2000m
Operatintg temperature	-50℃~55℃
Humidity	<50% at40℃(without condensation)
Storage temperature	-30℃~70℃

Features

The three-display current and voltage meter protector highlights the core advantage of triple-screen simultaneous display of three-phase electrical parameters, which can accurately show three-phase current/voltage (or combined parameters such as current, voltage, power and electric quantity) in real time simultaneously. It integrates full-dimensional electrical protection functions including overvoltage, undervoltage, overcurrent, overload, phase loss and three-phase unbalance, and supports the customization of parameters like protection thresholds and action delays, with the function of automatic and manual fault reset. Adopting standard 35mm DIN rail mounting, it is suitable for three-phase power distribution scenarios such as AC380V. Featuring a flame-retardant structure for high safety and reliability, as well as easy installation and maintenance, it is widely used for power consumption monitoring and safety protection of key industrial three-phase equipment including motors, distribution cabinets and water pumps.
