Product Introduction

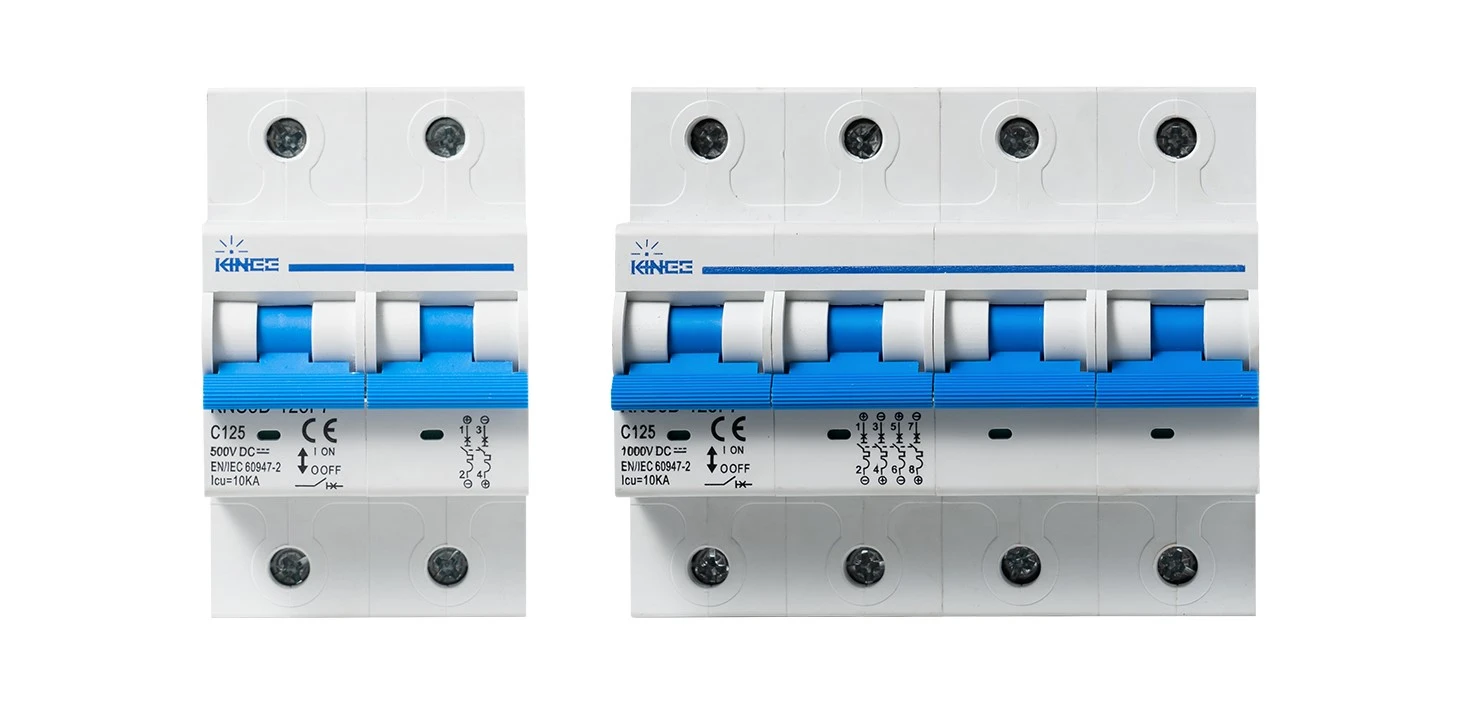

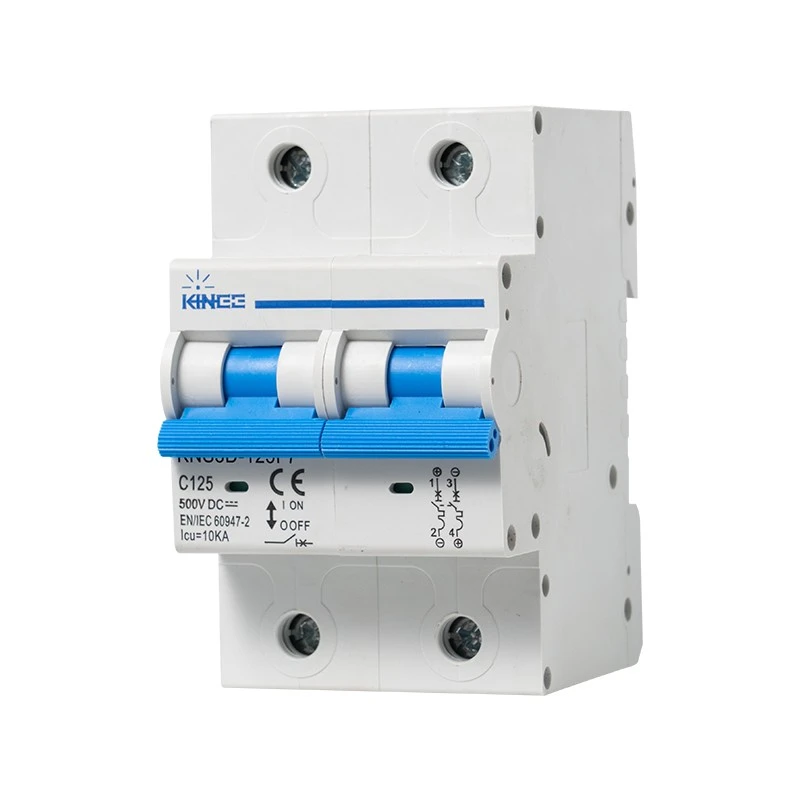

Maximum 1000V miniature DC circuit breaker,The KNS3D-125F7 series miniature DC circuit breakers are suitable for DC circuits with a maximum rated voltage of 1000V and a rated current of up to 125A. They are used for overload and short-circuit protection of lines, lighting, and power equipment, and can also be used for infrequent switching of lines and equipment under normal conditions.
Technical Parameters
|
Product Model |
Series |
Rated voltage (V) |
Electromechanical life (times) |
Rated short-circuit breaking capacity (KA) |
Instantaneous trip unit type and tripping current |
Rated current |
Nominal cross-sectional area of copper conductor (mm²) |
Remark |
|
KNS3D-125F7 |
1P |
250V |
10000 |
10 |
8～12In |
63A |
16 |
The tightening torque of the wiring terminals shall not exceed 3.5 N·m. |
|
2P |
500V |
80A |
25 |
|||||
|
3P |
750V |
100A |
35 |
|||||
|
4P |
1000V |
120A |
50 |
Features
Maximum 1000V miniature DC circuit breaker,This series of circuit breakers consists of a plastic housing, overcurrent trip unit, operating mechanism, contacts, and arc extinguishing system. The housing is made of high-strength, highly flame-retardant plastic. Multi-stage circuit breakers are assembled from multiple single stages; the trip units are connected by a linkage rod, and the handle is integrated with a linkage cover, ensuring consistency in the switching action of each stage.
DC Wiring Diagram

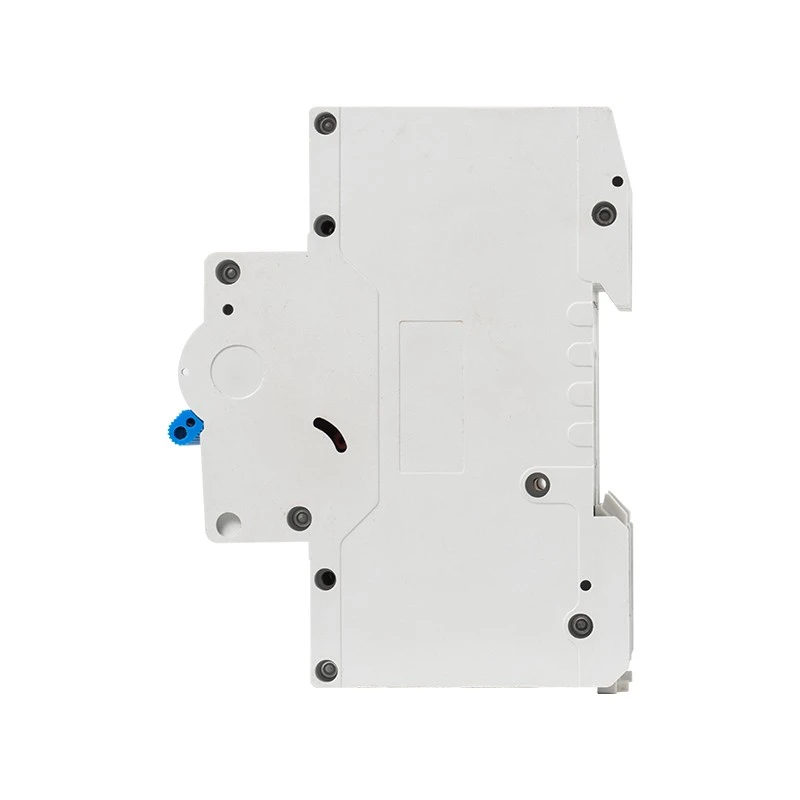

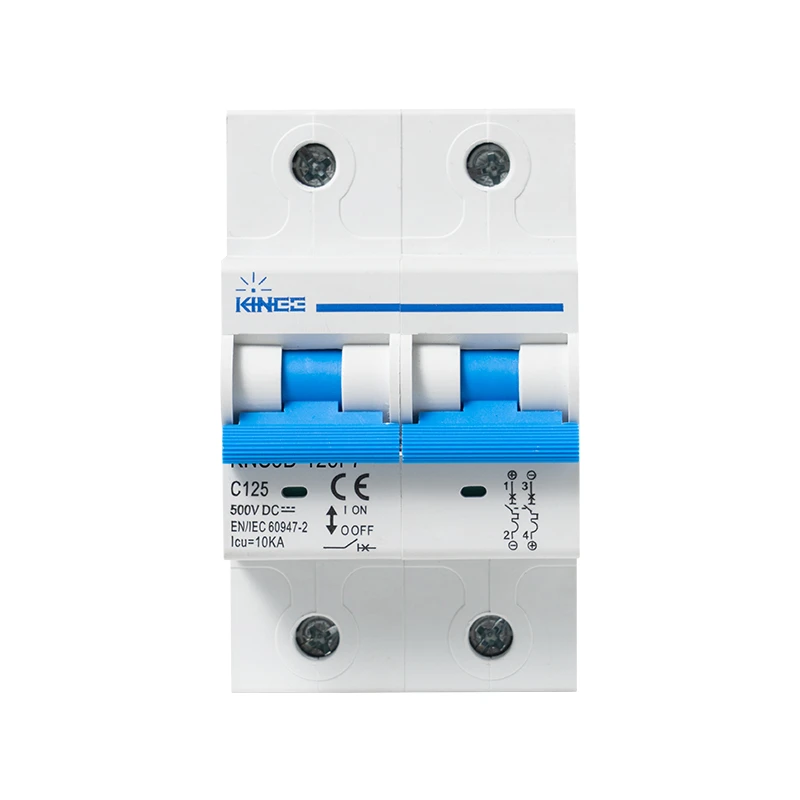

Appearance and Size
Products Description
Q: When can I expect to receive a quote and detailed information after submitting an inquiry?
A: A reply will be sent within 24 hours.
Q: What makes you different from other suppliers?
A: We have a full range of electrical products and can also customize products to meet your specific needs.
Q: Do you provide samples? Are they free or extra?
A: Yes, we can provide samples free of charge, but we will not cover the shipping costs.
Q: Can I get a sample for testing before placing an order?
A: Of course!
Q: How's the delivery? I really need them urgently!
A: Samples require 5-7 days. Bulk orders require 12-15 days.
