Product Introduction

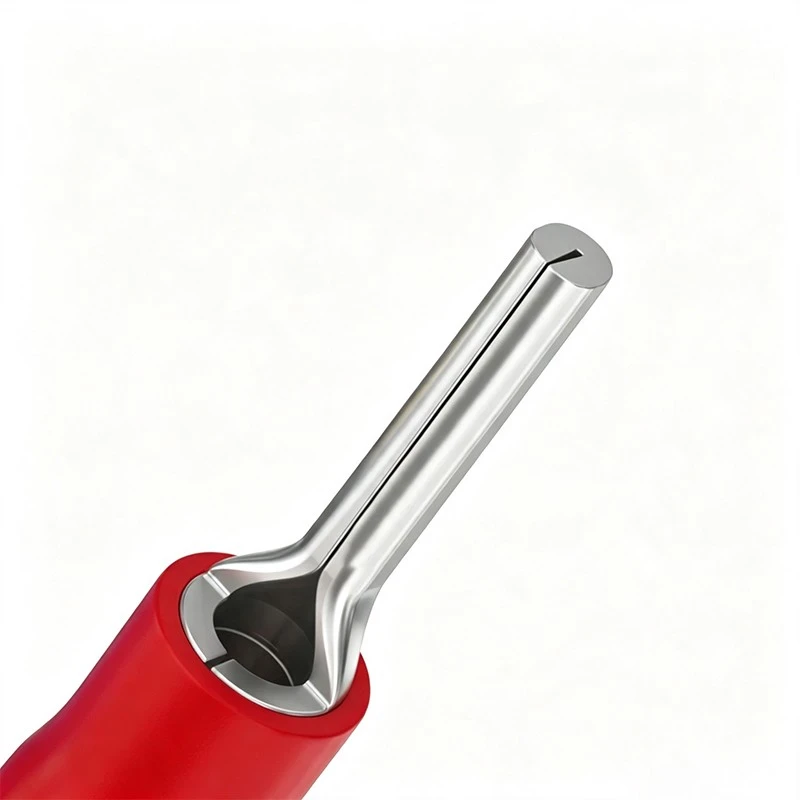

The PTV pin-type wiring terminal is an Insulated Pin Terminals Plug-in product, featuring a cold-pressed connection component made of a copper conductor and PVC insulating sleeve, designed specifically for 0.5–1.5 mm² (22–16 AWG) wires, with a rated current capacity of 19A.

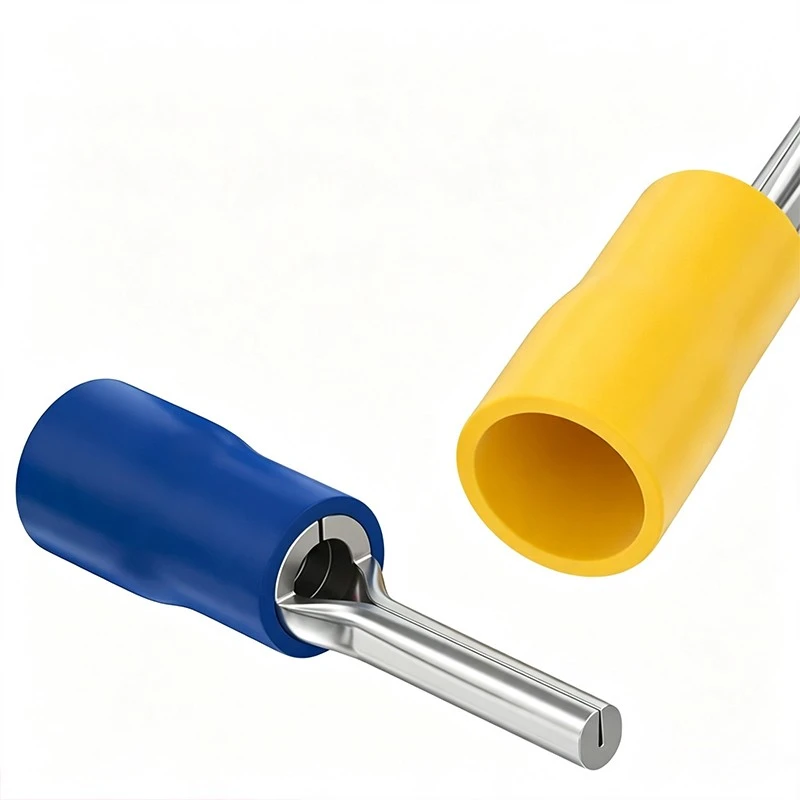

As a reliable Insulated Pin Terminals Plug-in, its unique pin-shaped structure allows it to be precisely inserted into various terminal blocks or sockets, ensuring a secure and robust connection, while the external insulating sleeve effectively prevents short circuits and electric shock hazards. This Insulated Pin Terminals Plug-in is widely used for internal wire terminations in applications such as distribution boxes, control cabinets, instrumentation, and household appliances.

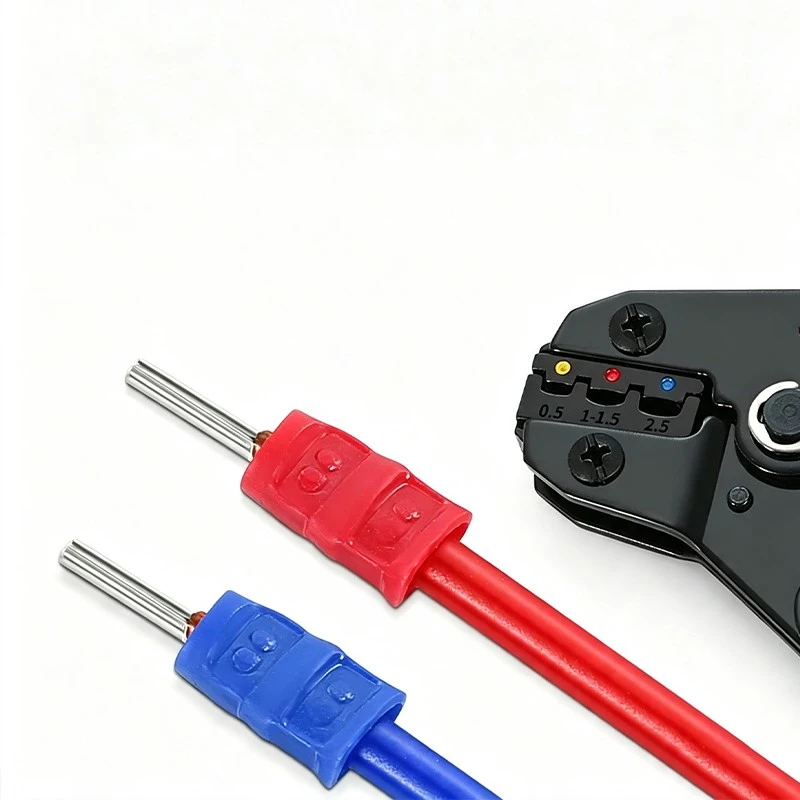

During installation, a dedicated crimping tool is required for cold-pressed fastening to ensure long-term stable electrical connections, making it a trusted choice among Insulated Pin Terminals Plug-in solutions for industrial and residential wiring.
Product Advantages
1. Thickened pure copper, tin-plated surface for oxidation resistance
2. PVC sheath, insulation against electric shock
3. Reliable crimping that won't detach, suitable for both hard and soft wires

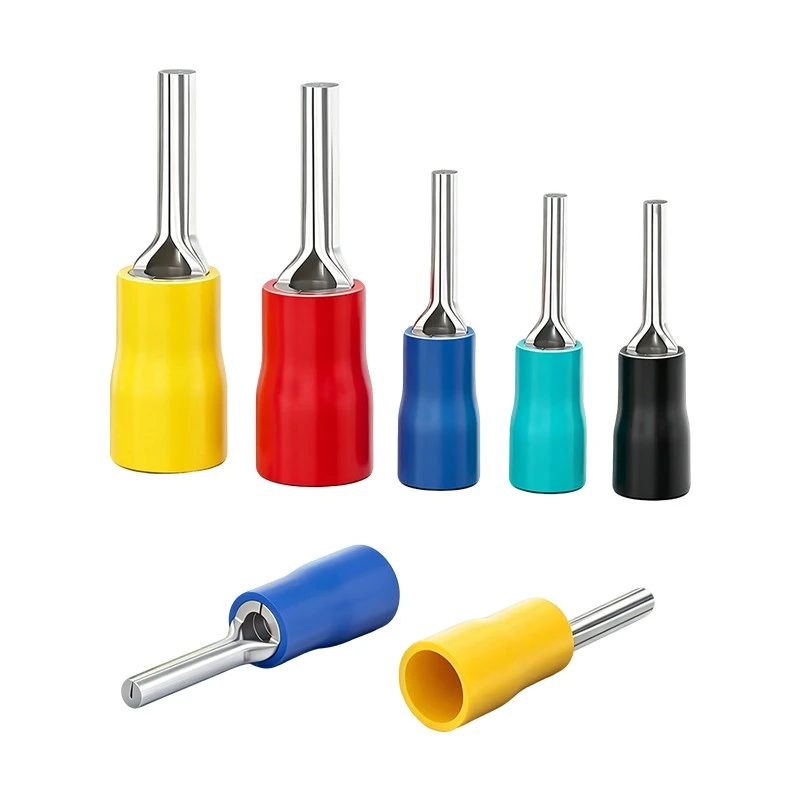

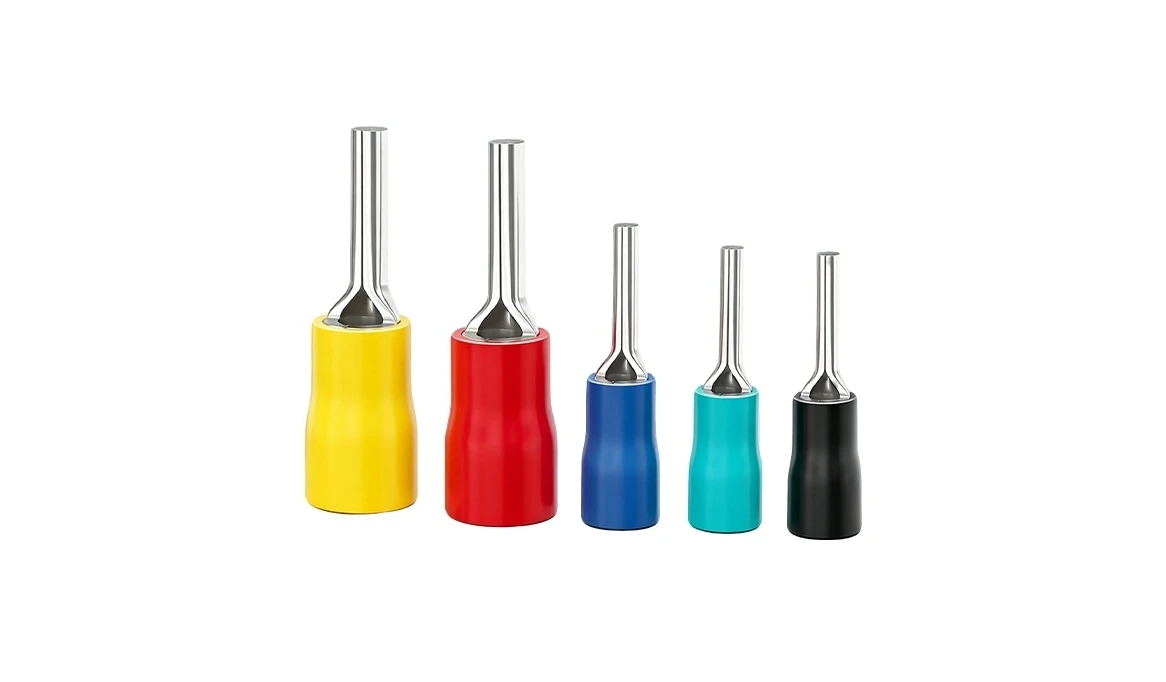

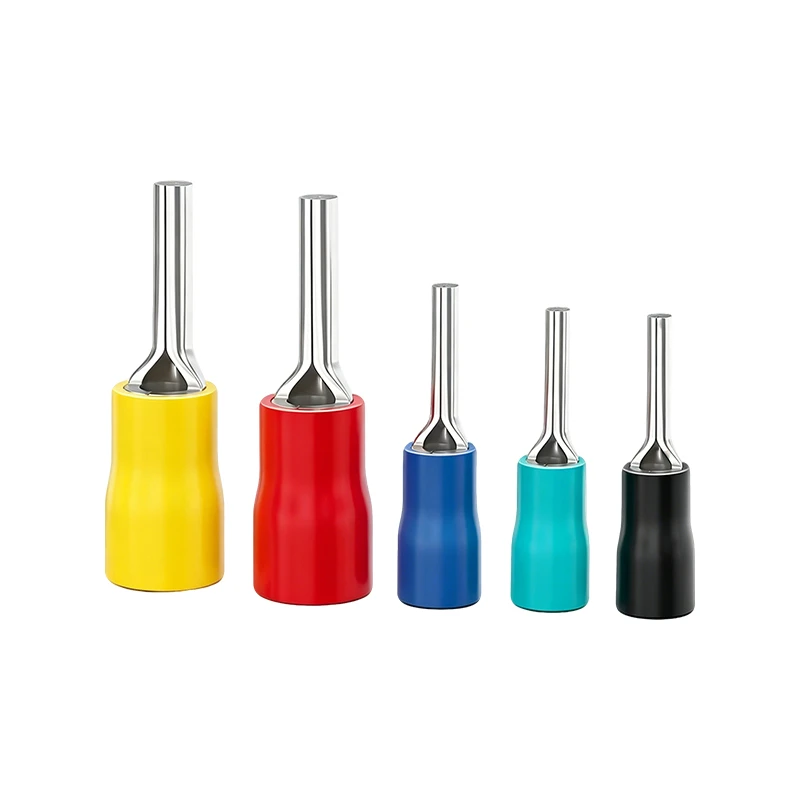

4. Multiple color options for easy identification of different circuits
Conductor size: 0.5~1.5 mm² (22-16) Rated maximum current: Imax = 19 A
|
Item No. |
Size |
Color |
|||
|
Fφ (mm) |
L (mm) |
H (mm) |
Dφ (mm) |
||
|
PTV1.25-9 |
1.9 |
19.0 |
10.0 |
4.3 |
Red |
|
PTV1.25-10 |
1.9 |
20.0 |
|||
|
PTV1.25-12 |
1.9 |
22.0 |
|||
|
PTV1.25-13 |
1.9 |
23.0 |
|||
Conductor size: 1.5~2.5 mm² (16-14) Rated maximum current: Imax = 27 A
|
Item No. |
Size |
Color |
|||
|
Fφ (mm) |
L (mm) |
H (mm) |
Dφ (mm) |
||
|
PTV2-9 |
1.9 |
19.0 |
10.0 |
4.3 |
Blue |
|
PTV2-10 |
1.9 |
20.0 |
|||
|
PTV2-12 |
1.9 |
22.0 |
|||
|
PTV2-13 |
1.9 |
23.0 |
|||
Conductor size: 1.5~2.5 mm² (16-14) Rated maximum current: Imax = 27 A
|
Item No. |
Size |
Color |
|||
|
Fφ (mm) |
L (mm) |
H (mm) |
Dφ (mm) |
||
|
PTV5.5-13 |
2.8 |
25.5 |
12.5 |
6.7 |
Yellow |
