Product Introduction

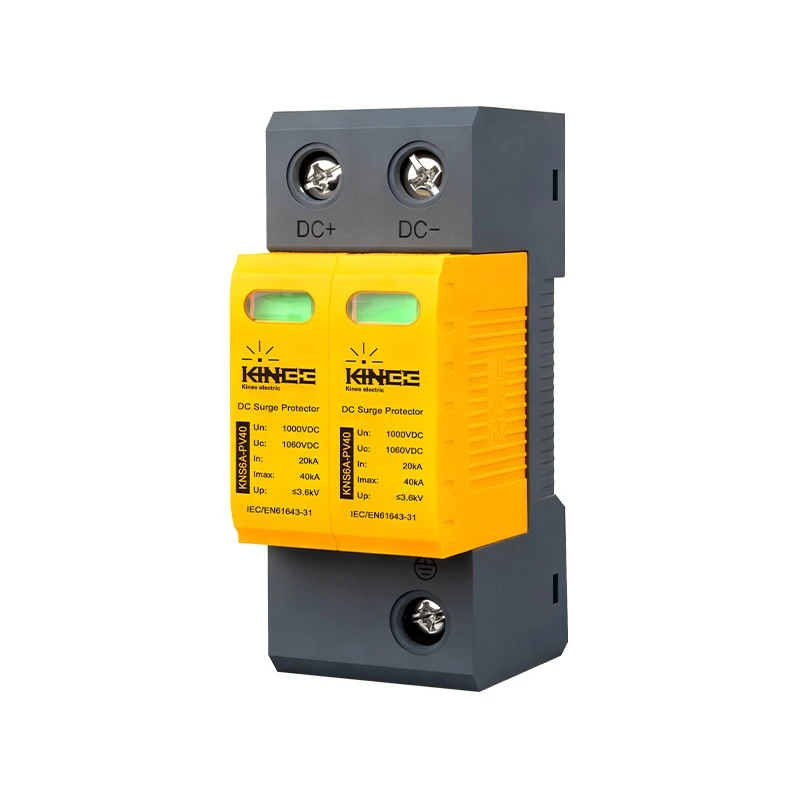

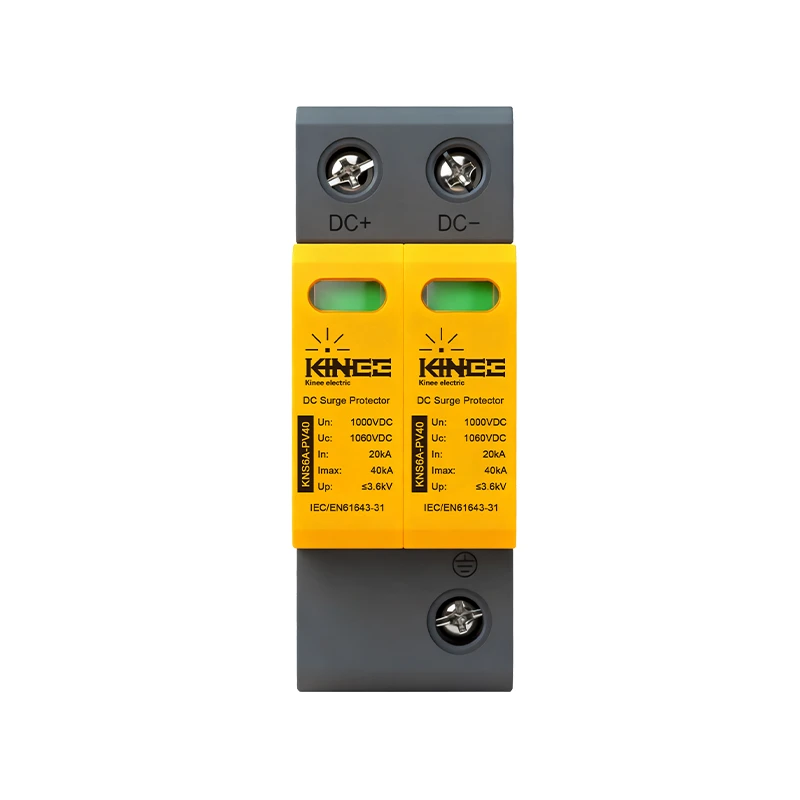

The KNS6A series DC power surge protector, a DC SPD 20/40KA Surge Protective Device, is suitable for lightning protection of solar photovoltaic power generation systems or other DC power systems.
As a reliable DC SPD 20/40KA Surge Protective Device, it can be used normally in high-altitude areas (5000m). This DC SPD 20/40KA Surge Protective Device helps protect DC power systems from lightning strikes or overvoltage damage. Therefore, the KNS6A series is an ideal DC SPD 20/40KA Surge Protective Device for such applications.
Features
· Extra-wide electrical clearance and creepage distance, ultra-high withstand voltage rating, meeting the requirements for use in high-altitude areas.
· Strong lightning current discharge capability, suitable for solar power generation systems.
· Modular, separable structure, convenient operation and maintenance.
· Equipped with remote signaling contacts for remote monitoring.
· Dual thermal trip devices, temperature-controlled circuit breaking technology.
· Visual alarm window color indicates protection operating status: green (normal) and red (fault).
· High operating voltage, high current carrying capacity, high safety, and high stability.9. Ambient environment freeing from explosive danger and air or dust which may cause corrosion of metal or weakness of insulation.
Main Technical Parameters Of Photovoltaic Dc Power Supply
|
Specifications and Models |
KNS6A-PV40 |
KNS6A-PV60 |
KNS6A-PV80 |
KNS6A-PV100 |
|
Rated Operating Voltage Uc (DC) |
800 1000 |
800 1000 |
800 1000 |
800 1000 |
|
Max. Continuous Operating Voltage Ucpv (V) |
1000 1200 |
1000 1200 |
1000 1200 |
1000 1200 |
|
Nominal Discharge Current (8/20) In |
20 |
30 |
40 |
60 |
|
Max. Discharge Current (8/20μs) Imax (kA) |
40 |
60 |
80 |
100 |
|
Voltage Protection Level (1.2/50μS) Up |
< 3.5 < 4.2 |
|||
|
Local Indication |
Green: normal, Red: failed |
|||
|
Protection Level |
IP20 |
|||
|
Material |
PA66 |
|||
|
Flammability Rating |
Complies with UL94V-U |
|||
Main Technical Parameters Of Wind Power
|
Parameter |
KNS6A-PV40 |
KNS6A-PV80 |
KNS6A-PV100 |
|
Rated operating voltage Uc (DC) |
690 |
690 |
690 |
|
Maximum continuous operating voltage Ucpv (V) |
820 |
820 |
820 |
|
Nominal discharge current (8/20) In |
20 |
40 |
60 |
|
Maximum impulse current |
40 |
80 |
120 |
|
Voltage protection level (1.2/50μS) Up |
2.0 |
2.5 |
4.0 |
|
Connecting conductor (mm²) |
6~35mm² |
||
|
SPD type |
Voltage limiting type |
||
|
Port type |
One-port |
||
|
Enclosure protection rating |
IP20 |
||
Video
Questions and Answers
Q: What's your DC SPD rated breaking capacity range?
A: We offer DC SPD from 20kA to 40kA, 500VDC, 600VDC, 800VDC, 1000VDC.
Q: How do you control quality?
A: Firstly, all raw material we selected the high quality one.Secondly, our professional and skilful workers care every details in handling the producing.Thirdly, our quality control department specially responsible for quality checking in each process.Finally, our product strictly follow ISO9001 quality control system, all products must be tested after finished production.
Q: About delivery time, how long should I wait before get my order?
A: It depends on your purchase order. It's better we discuss according to your detail plan.
Q: Do you provide OEM & ODM service?
A: Yes, we support OEM & ODM. For some items we have MOQ.
