Product Introduction

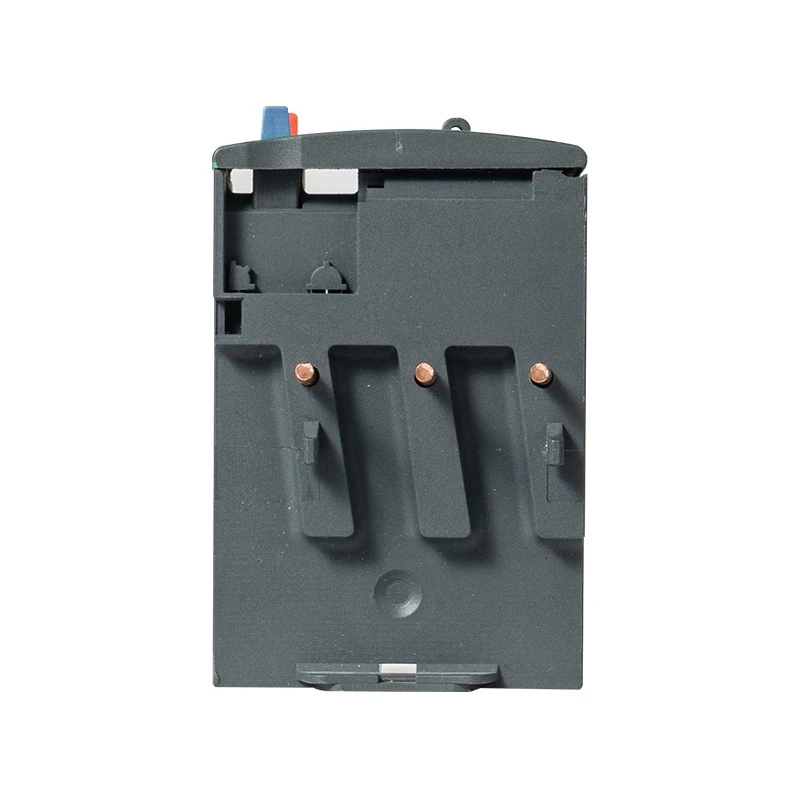

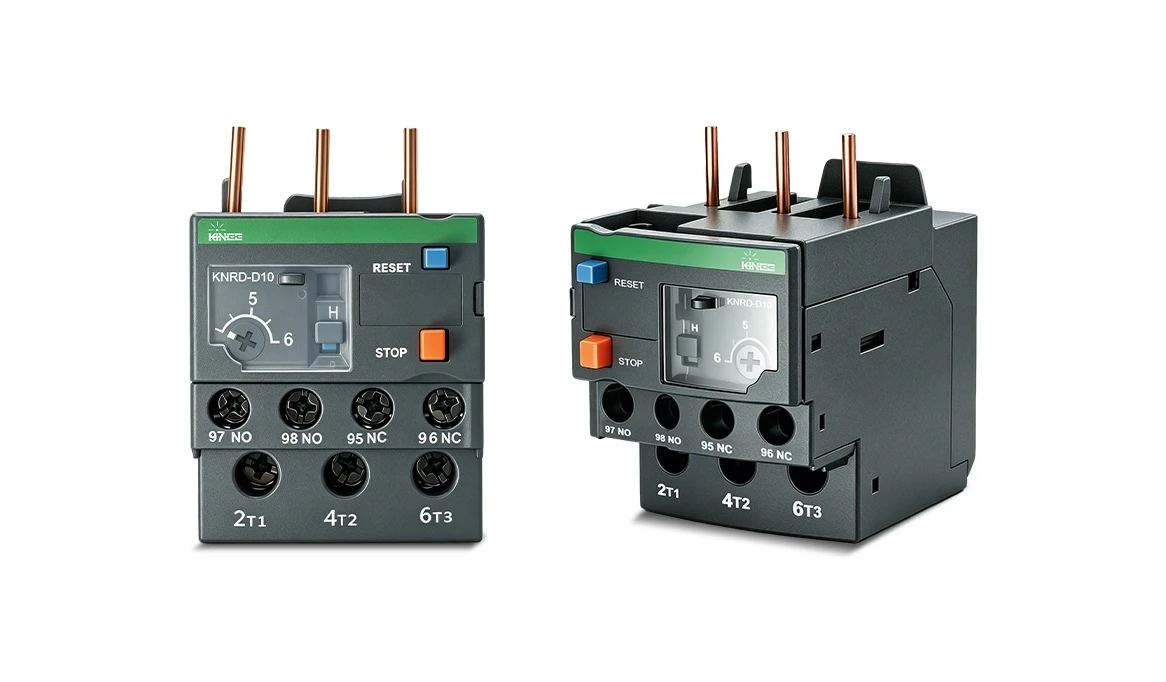

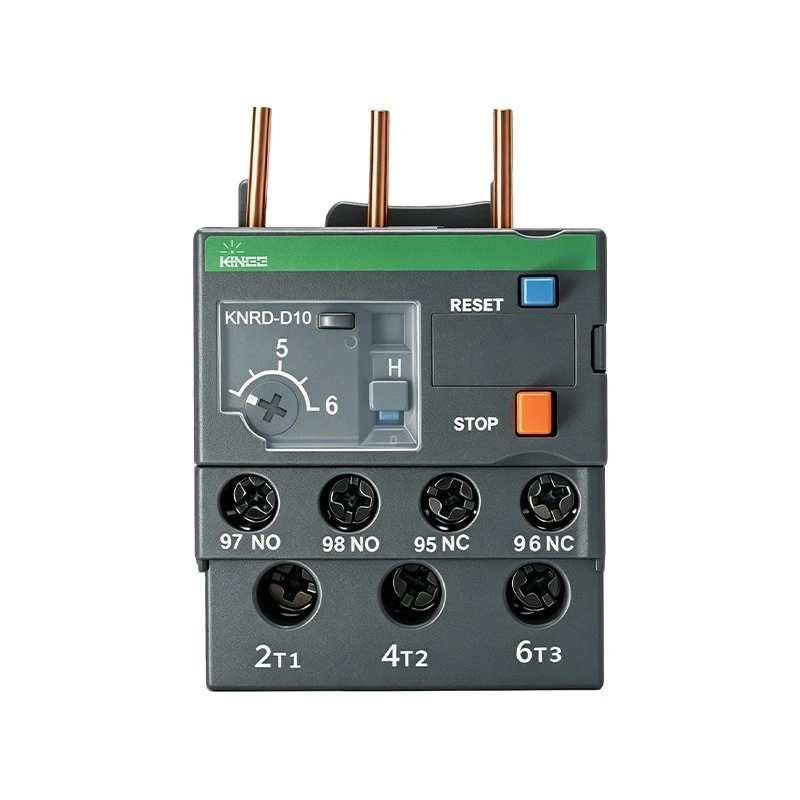

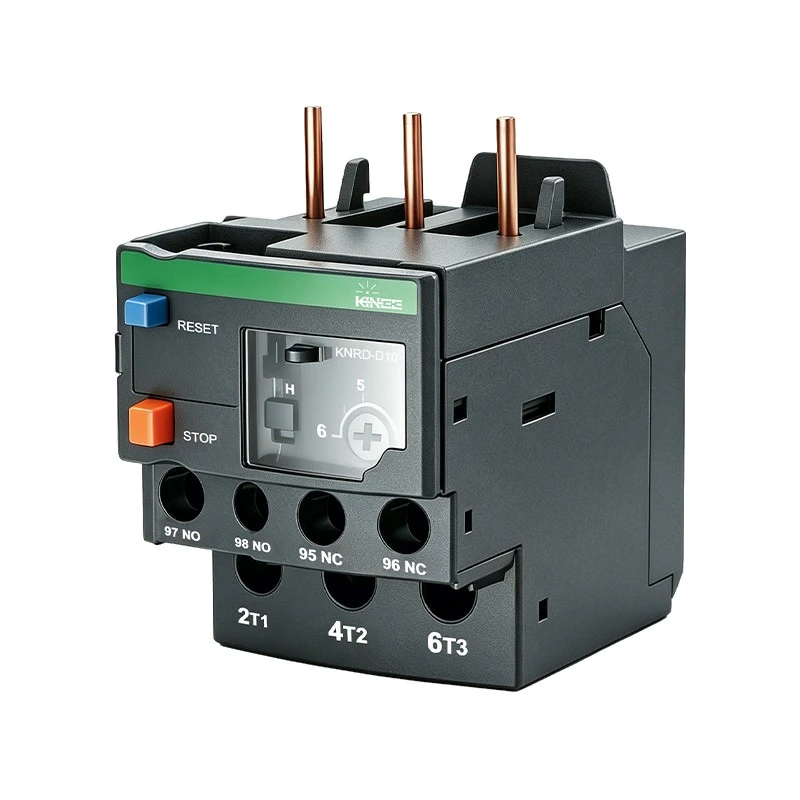

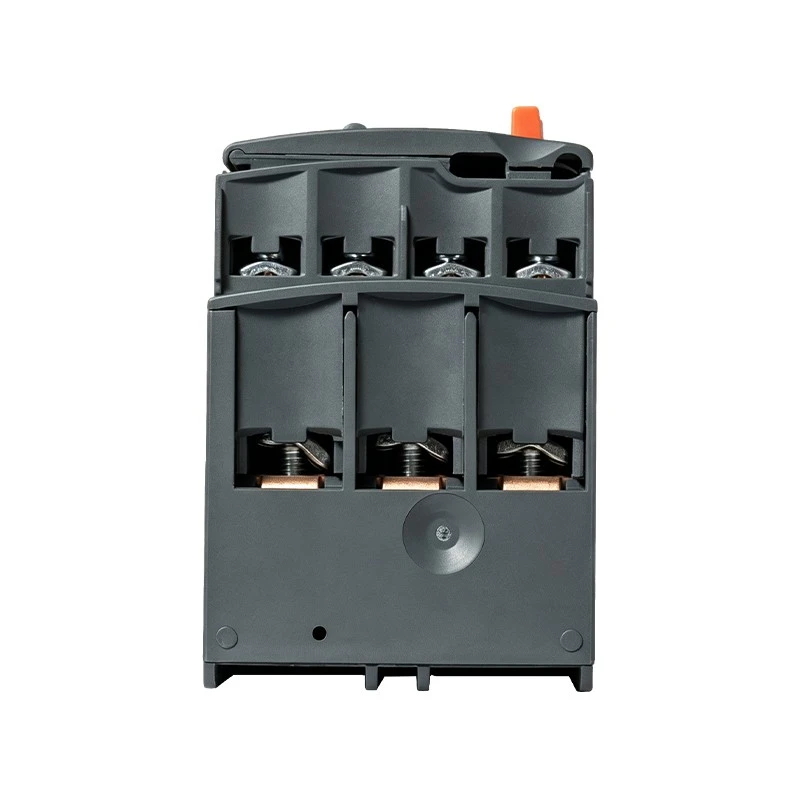

The KNRD-D series thermal overload relay is used for AC 50 or 60Hz, voltage up to 660V, current up to 80A and below circuits, for thermal protection of AC motors. Designed as a high-performance AC Magnetothermal Overload Relay, it ensures reliable overload and phase-failure protection even under fluctuating ambient conditions. Unlike conventional models, this AC Magnetothermal Overload Relay features a built-in differential mechanism and temperature compensation environment section, which significantly improves tripping accuracy and reduces nuisance trips in variable-temperature industrial settings.
This AC Magnetothermal Overload Relay can be directly matched with the KNX2(KNX2-DN)new AC contactor, offering a compact and interchangeable mounting solution for motor starter combinations. Additionally, the KNRD-D series serves as a versatile AC Magnetothermal Overload Relay that supports both manual and automatic reset modes, making it suitable for a wide range of conveyor, pump, and compressor applications.
Comply with standards such as GB/T14048.4, GB/T14048.5, IEC60947-4, VDE0660, etc.
Parameter Table 1
|
Model |
KNRD-D series |
|
Voltage |
up to 660V |
|
Current |
up to 80A and below circuits |
|
Frequency |
AC 50 or 60Hz |
|
Function |
thermal protection of AC motors |
Parameter Table 2
|
Setting Current |
0.1-0.16A-48-65A |
|
Tripping Class |
10,10A |
|
Matched Contactor |
KNX2-H |
|
Steandard |
IEC/EN 60947-4-1,IEC/EN 60947-5-1 |
|
Certificate |
CE |
Parameter Table 3
|
Product name |
Rated current |
Setting current |
|
KNRD-D |
25 |
1P6 |
|
↓ |
↓ |
|
|
25:25A |
1P6: 1.0-1.6A |
|
|
65:65A |
P16: 0.1-0.16A |
|
|
3 Series: 65A |
... |
|
|
65:48-65A |
||
|
P means decimal point |
Selection and Parameters
|
Model |
Number |
Rated current range |
Contactors that can be inserted and installed |
|
KNRD-D13 |
1301 |
0.1~0.16 |
D09~D32 |
|
1302 |
0.16~0.25 |
D09~D32 |
|
|
1303 |
0.25~0.4 |
D09~D32 |
|
|
1304 |
0.4~0.63 |
D09~D32 |
|
|
1305 |
0.63~1 |
D09~D32 |
|
|
1306 |
1~1.6 |
D09~D32 |
|
|
1307 |
1.6~2.5 |
D09~D32 |
|
|
1308 |
2.5~4 |
D09~D32 |
|
|
1310 |
4~6 |
D09~D32 |
|
|
1312 |
5.5~8 |
D09~D32 |
|
|
1314 |
7~10 |
D09~D32 |
|
|
1316 |
9~13 |
D09~D32 |
|
|
1321 |
12~18 |
D09~D32 |
|
|
1322 |
16~24 |
D25/32 |
|
|
KNRD-D33**/3** |
3322 /325 |
17~25 |
D40~D65 |
|
3353 /332 |
23~32 |
D40~D65 |
|
|
3355 /340 |
30~40 |
D40~D65 |
|
|
3357 /350 |
37~50 |
D50~D65 |
|
|
3359 /365 |
48~65 |
D50~D65 |
