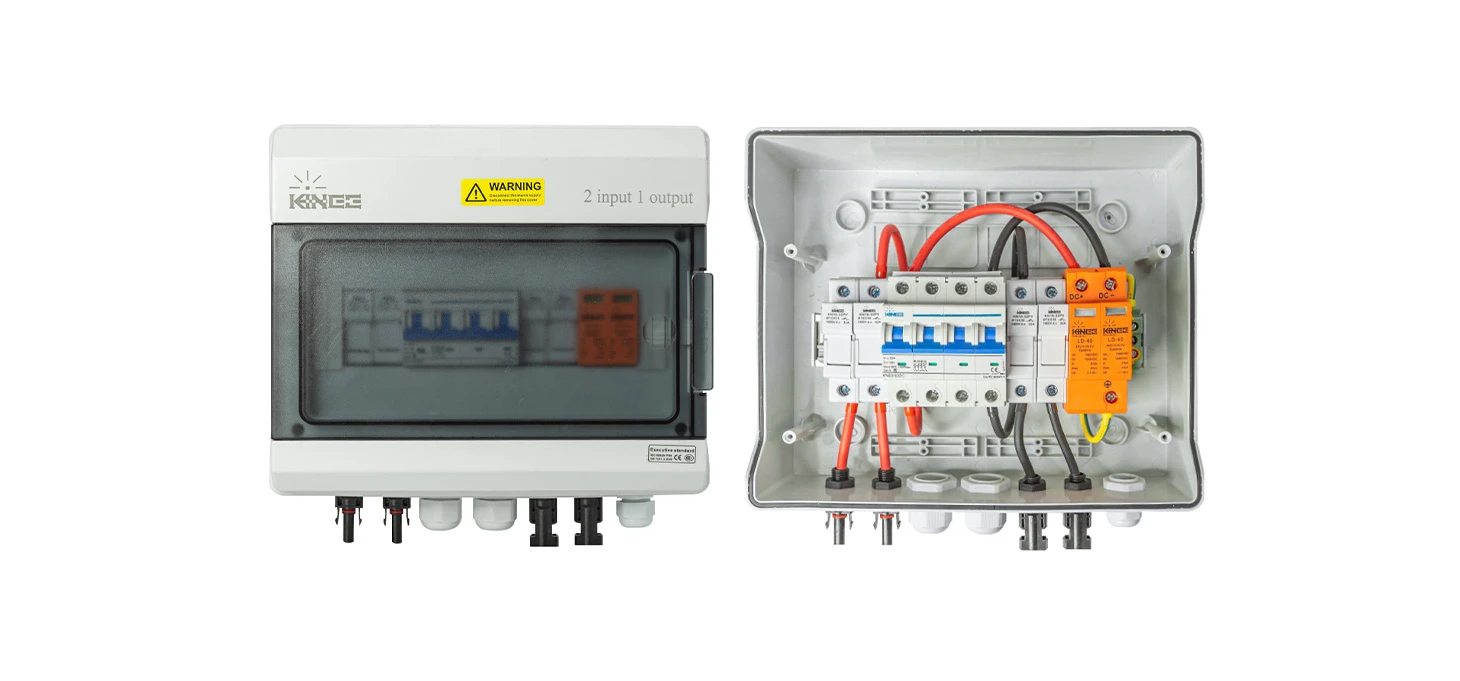

PV Combiner Box 2 Input 1 Output

Wenzhou Kinee Electrical Co., Ltd. is one of the most reliable manufacturers and suppliers of pv combiner box 2 input 1 output in China. We warmly welcome you to wholesale pv combiner box 2 input 1 output for sale here from our factory. All customized products are with high quality and competitive price.

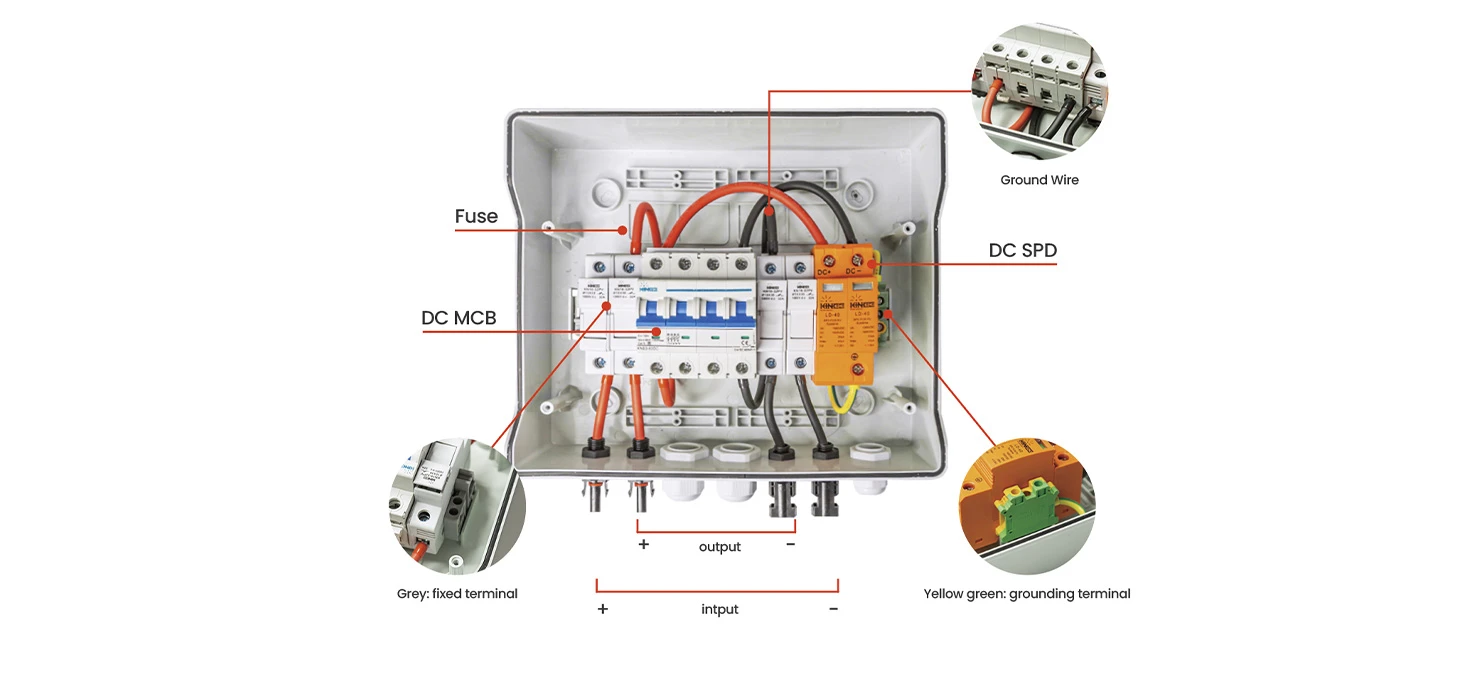

A photovoltaic DC combiner box is the current distribution center in a photovoltaic power station. It primarily collects the DC power generated by photovoltaic panels or PV strings and then sends it to the inverter. For small and two-string solar systems, a PV Combiner Box 2 input 1 output can be used to combine two DC input circuits into one output circuit while providing necessary protection. Simultaneously, the PV Combiner Box 2 input 1 output helps protect circuit safety through functions such as overcurrent protection, surge protection, and convenient disconnection for maintenance.

Like a traffic hub in the circuit, the PV Combiner Box 2 input 1 output can reduce wiring complexity, improve installation efficiency, and make system inspection easier. When a fault occurs, the PV Combiner Box 2 input 1 output helps isolate the problem string quickly, ensuring that other parts of the photovoltaic system can continue operating normally where the system design allows.

• Check the system voltage: Select the 600V or 1000V version according to the PV string open-circuit voltage and the inverter DC input voltage. The selected voltage rating must not be lower than the maximum DC voltage of the system.
• Check the string current: Select the fuse, circuit breaker, and cable size according to the operating current and short-circuit current of the PV modules. The protection value should not be too low or too high.
• Confirm polarity: The positive and negative poles of the input and output must not be reversed. After wiring, check that terminals are tightened and cable glands are properly sealed.
• Ensure reliable grounding: The grounding terminal of the SPD must be reliably connected to the grounding system. Poor grounding will greatly reduce the surge protection effect.
• Choose a suitable installation position: Install the box in a location that is easy to inspect, well ventilated, and protected from long-term water accumulation, severe impact, and enclosed high-temperature conditions.
• Perform regular maintenance: Periodically check the SPD status window, circuit breaker status, terminal temperature rise, and enclosure sealing condition.
